Most installations call for a space between the hood’s base and the cooking surface of 20″ to 24″. Except in the case of a gas range, this distance should fall somewhere between 24″ and 30″

Silky Terrier Dog Breed Playing Aro... Silky Terrier Dog Breed Playing Around

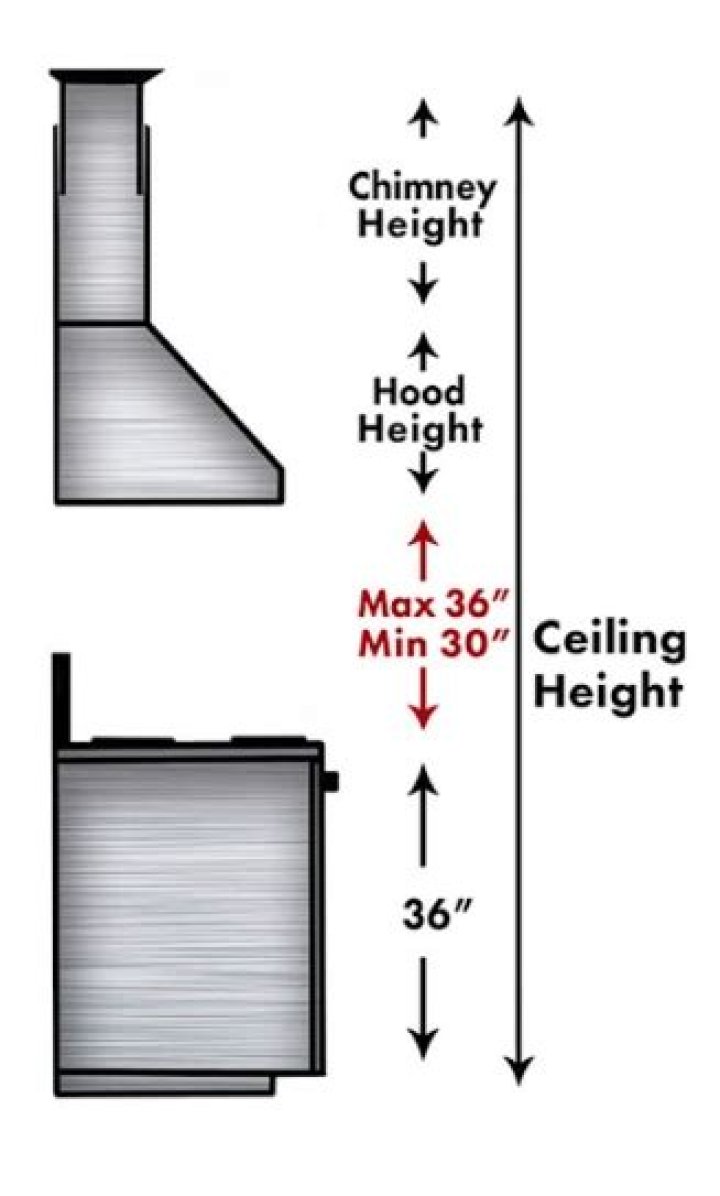

What is the best height for a range hood?

Install your range hood 24–36 inches above your cooktop if you have a gas range. Install your range hood 20 to 24 inches above your cooktop if you have an electric range. Install your range hood 36-42 inches above your cooktop if you have one.

How high should a range hood be over a gas stove?

The 18″ canopy wall hood is the most common range hood for professional gas cooking ranges. Installing this type of range hood above the cooktop should be done at a height of 30″ to 36″.

How high should a range hood be over an electric stove?

For both gas and electric ranges, the standard range hood height is between 28 and 36 inches above the cooktop. The minimum height is 28 inches. The hood may be damaged if it is brought any closer. If your hood is higher than 36 inches, it will not be able to effectively remove the heat from your cooktop.

What is the standard height of a range?

WHICH SIZE STOVE IS COMMONLY USED IN MOST KITCHENS? 30 inches wide, 25–27 inches deep (excluding handles and knobs), and 36 inches tall are the typical dimensions of most stoves (excluding control panels).

Is a hood required over a stove?

The majority of residential building codes do not require a range hood above a stove or cooktop, but it’s a good idea to check with your local building department to see if this is the case. Even if you don’t have to wear a hood, you should think twice before doing so.

What is the standard size of a range hood?

What are the dimensions of a standard range hood? A range hood’s width can range from 24″ to 60″ in length, but the most common sizes are 24″, 30″ and 36″. The grease, odors, and smoke generated by any burner or element below should be captured by a hood that is the same size as your cooktop.

How much space should be between cabinet and hood?

To avoid all of these problems, you should leave a 1/2-inch gap between the wall-mounted range hood’s edge and the cabinetry around the perimeter.

How far can a range hood be vented?

How far can a range hood be sucked in? If you have a straight run of 30 feet, a run with one elbow of 25 feet, and a two-elbow run that is less than 20 feet, your duct should be no longer than 30 feet. The better the duct, the shorter it should be. Air from your kitchen may be unable to escape if the ductwork is too long.

Does range hood have to go to ceiling?

Absolutely. By drawing the eye upward, a ceiling-mounted range hood gives the appearance of additional height in the kitchen.

What size hood do I need for a 36 cooktop?

If your range is 36 inches wide, you must have a vent hood that is at LEAST 36 inches wide. You can use a 30 inch vent hood if you have a 30″ oven. If your range is smaller than this, you’ll want to go with a smaller size of battery.
