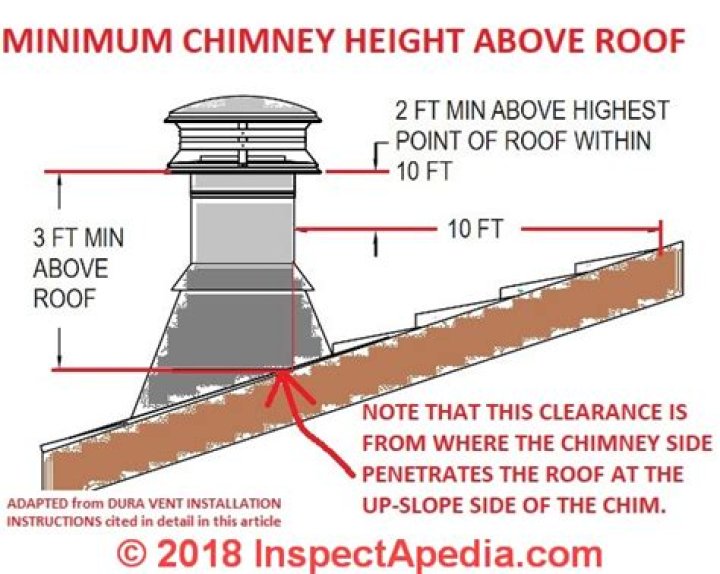

Explanation of the 3-2-1-10 RuleThe chimney pipe must be at least three feet above the roof, but it must also be at least two feet taller than anything within ten feet of the chimney. It is the rule stating the pipe needs to be 2 feet above anything within 10 feet that confuses the majority.

Silky Terrier Dog Breed Playing Aro... Silky Terrier Dog Breed Playing Around

How far above the roof does a stove pipe need to be?

Therefore, a heating exhaust vent should be at least 3 feet (1 meter) above the roofline or 2 feet (61 centimeters) above any part of a 10-foot (3-meter) radius from the chimney or stove pipe, as a general principle.

How high does a wood stove chimney need to be above the roof?

Stick-and-brick homes need to have their chimney openings at least three feet above the roof line, or two feet above any part of the building within 10 feet, to be safe. The tallest part of most small structures, such as cabins and tiny homes, is within 10 feet of the chimney.

How high can you run stove pipe?

Combustibles must be kept at least 18″ away from black single wall stove pipes (double-wall black pipes have a clearance of 6″), while class A chimney pipes are typically only 2″ away.

How high does my flue need to be?

Termination and Chimney HeightsThe recommended minimum chimney height for wood burning and multi-fuel appliances is 4.5 m, measured from the appliance’s highest point to the chimney’s highest point. Ideally, the chimney should be positioned so that it rises straight up from the roof ridge.

How high should chimney cap be above flue?

When it comes to the height of your chimney cap, it should be at least eight inches higher than the top of the flue tiles that it is covering. For this reason, it’s important that your chimney’s draft is not hindered by the chimney cap.

Why does chimney have to be higher than the roof?

Slate, metal, rubber, asphalt, or cedar shake all have the same effect. There is another school of thought, however, that this minimum height is for performance, ensuring that the chimney is tall enough to provide draft. So as well as preventing drafts from being hindered by any other parts of your building.

How tall should wood stove chimney be?

Chimneys must be at least 3 feet above a flat roof and at least 2 feet above any raised part of a roof within 10 feet of a chimney to be considered safe. It’s not always possible to maintain sufficient vertical clearance to keep eddy currents from interfering with the chimney draft. Trees of unusual heights may be to blame.

Can I complain about my Neighbours wood burning stove?

The Environmental Protection Act 1990 mandates that local councils investigate complaints of public health and nuisance, including smoke and fumes from fires or stoves.

How high must a chimney be above the roof South Africa?

According to building codes, a chimney must stick out at least one meter above the highest point on the roof from which it is attached.

Do taller chimney draw better?

Stronger Drafts are produced by taller chimneys.Consider increasing the chimney’s height if a short system is causing problems with airflow. The addition of a chimney may have little or no effect if there are draft issues with systems that are higher than the minimum recommended system height.
