What do the two wires on the solenoid represent?

The “B” or “battery” terminal is as follows: The solenoid’s direct connection to the positive battery cable is represented by this terminal. The “S” or “start” terminal is as follows: The terminal from which power is received from the ignition switch.

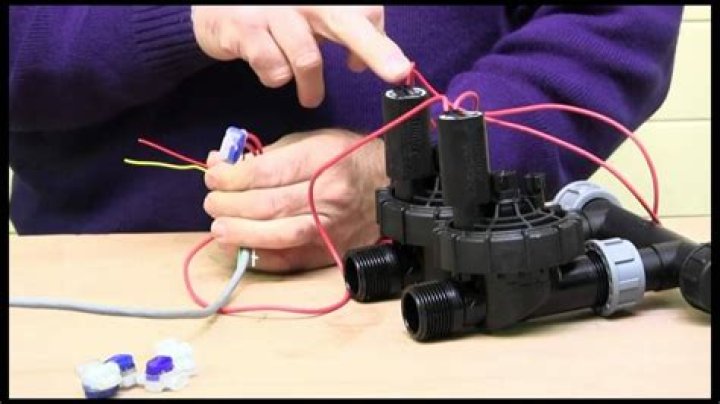

What is the best way to wire a solenoid valve?

Connect the common (usually white) wire of your multi-conductor irrigation cable to one of the wires from each solenoid. Each of the other individual wires should be connected to a different colored wire. Also, Zones should be recorded against wire color for future reference.

Is there a positive and negative side to a solenoid valve?

Electrical polarity refers to the presence of a positive and negative pole in an electrical circuit. Also, When it comes to solenoid valve coils, one of the most frequently asked questions is whether polarity should be considered. Lastly, the simple answer is that on solenoid valve coils, polarity does not matter.

Is it necessary to ground the solenoid?

The pull in and hold windings of the solenoid require a ground. Also, there are two circuits inside the solenoid, a heavy pull in winding and a lighter hold winding, and if the heavy winding has gone open circuit, the starter will not engage.

What are the wires that connect to the starter solenoid?

A typical starter solenoid has one small connector (the white connector in the photo) for the starter control wire and two large terminals: one for the positive battery cable and the other for the thick wire that powers the starter motor itself (see the diagram below).

Why are there three wires on solenoid valves?

Three wires are connected to the XR33 actuator, which controls the valve position. Also, the ground is connected to the black or neutral wire. Also, the power is connected to the red or positive wire. Lastly, when power is applied or removed, the green wire acts as a control wire, changing the position.
