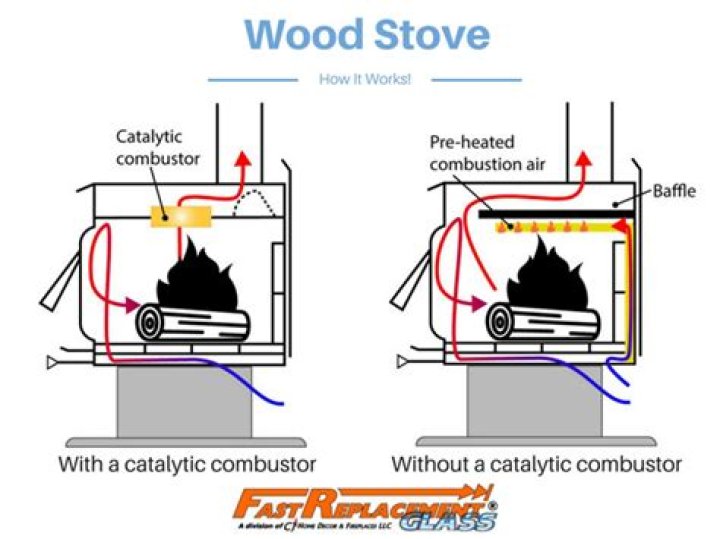

In order to re-burn the gases and particles released by burning wood, a catalytic wood stove utilizes a catalytic combustor. Increased efficiency, lower emissions, and longer burn times are achieved by passing these gasses through the catalytic combustor at extremely high temperatures.

Silky Terrier Dog Breed Playing Aro... Silky Terrier Dog Breed Playing Around

How long does a catalytic converter last in a wood stove?

Every 4-5 years, your stove’s catalytic combustor needs to be replaced. Replacing it will cost you about $100, but the benefits it provides in terms of improved efficiency, cleaner burning, and peace of mind are well worth the investment. A catalyst can be replaced rather than the entire firebox, which is a lot easier to do.

Do catalytic wood stoves require electricity?

Electricity is not required to run wood stoves, making them an excellent backup heating source. In order to use optional blowers, which help distribute heat, you’ll need to have electricity.

Do catalytic wood stoves produce less creosote?

During operation, the catalyst itself becomes so hot that you can enjoy heat without the need for a flame. Burn time is lengthened and creosote buildup is minimized because less wood is required.

Which is better catalytic or non catalytic wood stove?

A catalytic wood stove is a better option if you’re looking for a long-burning, high-efficiency heating source, but a non-catalytic stove can still be used as a primary source of heat and provide long burn times.

What does a catalytic converter do in a wood-burning stove?

It looks like a honeycomb when you see the catalytic stove’s combustor, or the catalytic converter. Smoke can be produced at a lower temperature thanks to the converter. At around 1100 degrees Fahrenheit, smoke starts to catch fire. Just 500 to 550 degrees are needed to burn the smoke in the wood stove with the catalyst.

What is the cleanest burning wood stove?

Stoves, Liberty WoodThe Liberty is the EPA’s cleanest-burning large stove, producing only 2.6 grams of emissions per hour. It’s also Lopi’s biggest stove yet!

Can I remove catalyst from wood stove?

Fires can start in the chimney if you remove your catalyst. Breaching the terms of a product’s warranty: Stoves with catalytic elements are made to function at high temperatures. An uncontrolled fire may damage or render your stove unusable if you remove the catalyst.

Can I add a catalytic combustor to my wood stove?

The basic concept can be applied to any roughly cubic metal (steel or iron) wood burner. In order to start working as soon as possible, the converter must reach a temperature of at least 500°F. A location close to the fire ensures that the unit does so throughout the burn.

What temperature destroys a catalytic combustor?

The combustor will be damaged if the temperature rises above 1800°F (1000°C). Between 1400 and 1600 degrees Fahrenheit (650 and 760 degrees Celsius), but operating temperatures between 1000 and 1300 degrees Fahrenheit (537 and 704 degrees Celsius) are preferred.

What is a catalytic combustor made of?

Combustors with catalytic combustor designs can be wheel, oval, or rectangular in shape and are made of ceramic honeycomb. Typically, it is coated with palladium or another noble metal so that it can withstand the harsh conditions of heating processes. It burns the smoke instead of letting it escape through the flue or stovepipe.
