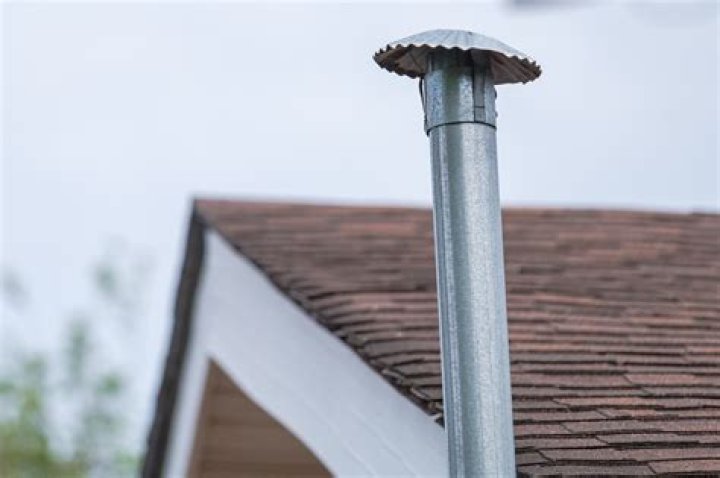

At least 2 feet (610 mm) above the highest point where it passes through a building’s roof and at least 2 feet (610 mm) above any part of the building within 10 feet of horizontal distance are the requirements for single-wall metal pipe (3048 mm).

Silky Terrier Dog Breed Playing Aro... Silky Terrier Dog Breed Playing Around

How high does a water heater vent need to be?

You’ll need six for a single-wall piping “only masonry or concrete can be used as a conduit through a ceiling, floor, or wall to provide adequate clearance (non-combustible). You must allow for at least 12 inches of clearance for the draft hood connection “before inserting an elbow fitting into the line of vertical vents.

How high does B vent pipe be above roof?

Dimensions of Type B Rooftop Gas Vent ChimneysAnything within a ten-foot radius of a chimney should be at least two feet above the top of the chimney. B-Vents should be at least two feet above the roof surface except for flat and very low slope roofs listed in the table below.

What is the clearance for B vent?

Combustibles must be at least one inch away from Type B Gas Vents. This one-inch clearance is typical for all brands of Type B Vent, but each section of the vent pipe is marked with the clearance required by Underwriter Laboratories, so it should be checked.

What is the proper way to vent a gas water heater?

So that the hot exhaust can leave your house, the venting must be installed in an upright or upward sloping position. When installing a standard atmospheric water heater vent, it is critical that your home’s existing vent system is tested and found to be functioning properly.

What is the proper size vent for gas water heater?

For most installations, a vent connector with a minimum diameter of 4 inches is required for a 40-gallon water heater with a 3-inch outlet on the draft hood. A 1-inch increase in the vent connector’s diameter is required.

How far above roof does furnace vent need to be?

Over 12 inches (305 mm) in diameter or less than 8 feet (2438 mm) from a vertical wall or similar obstruction, gas vents shall terminate not less than 2 feet (610 mm) above the highest point where they pass through the roof and not less than 2 feet (610 mm) above any portion of a building within 10 feet (305 mm).

How hot does B vent pipe get?

As long as the vent is installed correctly, it will not come apart as a result of vibration, and it will protect against the risk of fire or vent failure. When used with Category I appliances, the maximum flue gas temperature should not exceed 400°F above ambient.

Can a direct vent water heater be vented vertically?

Vertical and horizontal combinations of vents are possible. In a one-pipe venting water heater, such as the atmospheric type above, the flue gases exit through a single pipe, while the combustion air enters the combustion chamber from the surrounding atmosphere.

How far can you vent a power vent water heater?

For 3″ diameter pipes, the maximum equivalent vent length is 60 feet, and for 4″ diameter pipes, the maximum equivalent vent length is 100 feet. It’s important that the intake portion of the vent is equal to or less than the exhaust length.

Can I use PVC to vent gas water heater?

Only gas water heaters with induced draft vent /exhaust motors can make use of PVC vent pipes. PVC pipes cannot be used with any other type of hot water heater. If permitted by the manufacturer and local authorities, the following information may also apply to CPVC and ABS pipes.

How far can you run B vent horizontal?

Cannot be installed horizontally: a Type B or single-wall vent connector. There is an exception to this rule: The International Residential Code specifies that a 1/4-inch per foot slope upward toward the vent is permitted (IRC G2427. 10.7).

Can you run B vent outside?

In the event of an emergency, such as a fire in your B vent system, you must completely enclose any part of the system that runs through an occupied space. However, mounting the B vent pipe on the building’s exterior wall is not something we recommend, especially when the weather is cold.

Is B vent a Category 3?

The appliance is in fact categorized. In order to use B-vent on Category 1 appliances, the appliance manufacturer must have certified a specific type of B-vent system.

Can you vent a standard water heater through the wall?

A horizontally vented water heater, also known as a direct vent water heater, is made to be installed without the use of a vertical chimney or flue. It is possible to bring in combustion air for the gas burner through the vents, which are located outside the house.

What happens if a water heater is not vented properly?

Exhaust gases exit the water heater through a vent connector, which is located on top of the water heater’s draft hood. The risk of a water heater backdraft increases with improper installation of a vent connector.
