The National Fire Protection Agency recommends a minimum clearance of 36 inches. This means that the stove’s back should be at least 36 inches away from any combustible materials, such as woodwork, unprotected walls, furniture, and even firewood.

Silky Terrier Dog Breed Playing Aro... Silky Terrier Dog Breed Playing Around

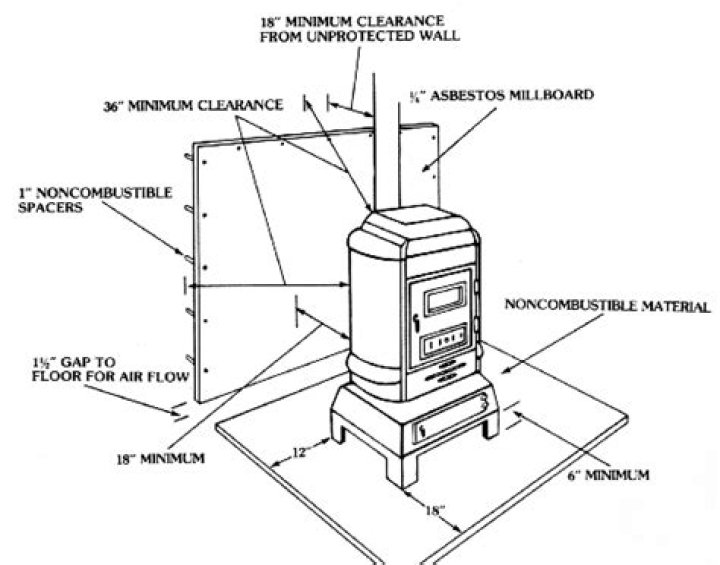

How close can a wood stove be to a wall with heat shield?

Making use of a “Allows you to reduce clearances from 18″ to 6″ to the wall and 9” to the ceiling when using a single-wall stovepipe. Stovepipe is widely believed to be able to extend from the hearth all the way to the top of the house, even through the roof and the ceiling.

What is the minimum clearance for a wood stove?

Yes. As an example, a 6-inch pipe requires 18 inches of clearance; this is three times the pipe’s diameter. Similar to the stove, heat shields can be used to reduce clearance. The clearance can be reduced by two-thirds using sheet metal, from 18 inches to 6 inches.

What do you put on the wall behind a wood stove?

Traditionally, a stove’s heat shield is referred to as a fireback.Heat-resistant materials like heat-resistant stones or wood stove heat shields can be cumbersome and unattractive when installed on the back wall of a home.

How do I fireproof a wall behind a wood stove?

Stone, brick, and tile are all good options for a fireproof wall behind a stove. Faux panels (such as those that mimic stone veneer) and firebacks can both improve the aesthetics of a wood burning stove.

How close can a wood stove be to cement board?

Noncombustible material (such as tile, concrete board, or certified to UL-1618 or as defined by local codes) must extend beneath the heater and be at least 6 inches from each side and at least 16 inches from the stove’s front face and be at least 6 inches wide to protect a combustible floor “(or the rear combustible clearance… )

How close can a fireplace be to a wall?

The National Fire Protection Agency (NFPA) recommends a distance of 36 inches between a fireplace and unprotected walls. Insulation or a heat-resistant material can be used to protect the walls around a fireplace that is less than 36 inches from the wall.

Can a wood stove chimney go out the wall?

Rather than installing a vertical chimney that necessitates the use of a ceiling collar and roof flashing when installing a wood or pellet stove, consider running the chimney pipe through an exterior wall.

Is drywall OK behind wood stove?

Because of its combustibility, drywall should never be installed behind a wood stove or beneath ceramic tile. You can install cement backerboard in its place if you remove it from the wall behind your wood stove. Using a drywall saw, cut right through the drywall and remove it.

Do cast iron wood stoves need fire bricks?

No. However, most stoves have a brick floor in order to prevent the fire from spreading. Year after year, the heat from the coals corrodes the steel stove floor, but the bricks keep it from deteriorating further.

Do I need a heat shield behind a wood stove?

You’ll need a heat shield if you can’t place your stove with at least 900mm of space between it and any other surfaces. A heat shield can reduce the distance between the stove and the surface it is protecting.
