The National Fire Protection Agency recommends a 36-inch clearance as a minimum standard of safety. In other words, the back of the stove should be at least 36 inches away from any combustible material, such as woodwork, unprotected walls, furniture, and even firewood.

Silky Terrier Dog Breed Playing Aro... Silky Terrier Dog Breed Playing Around

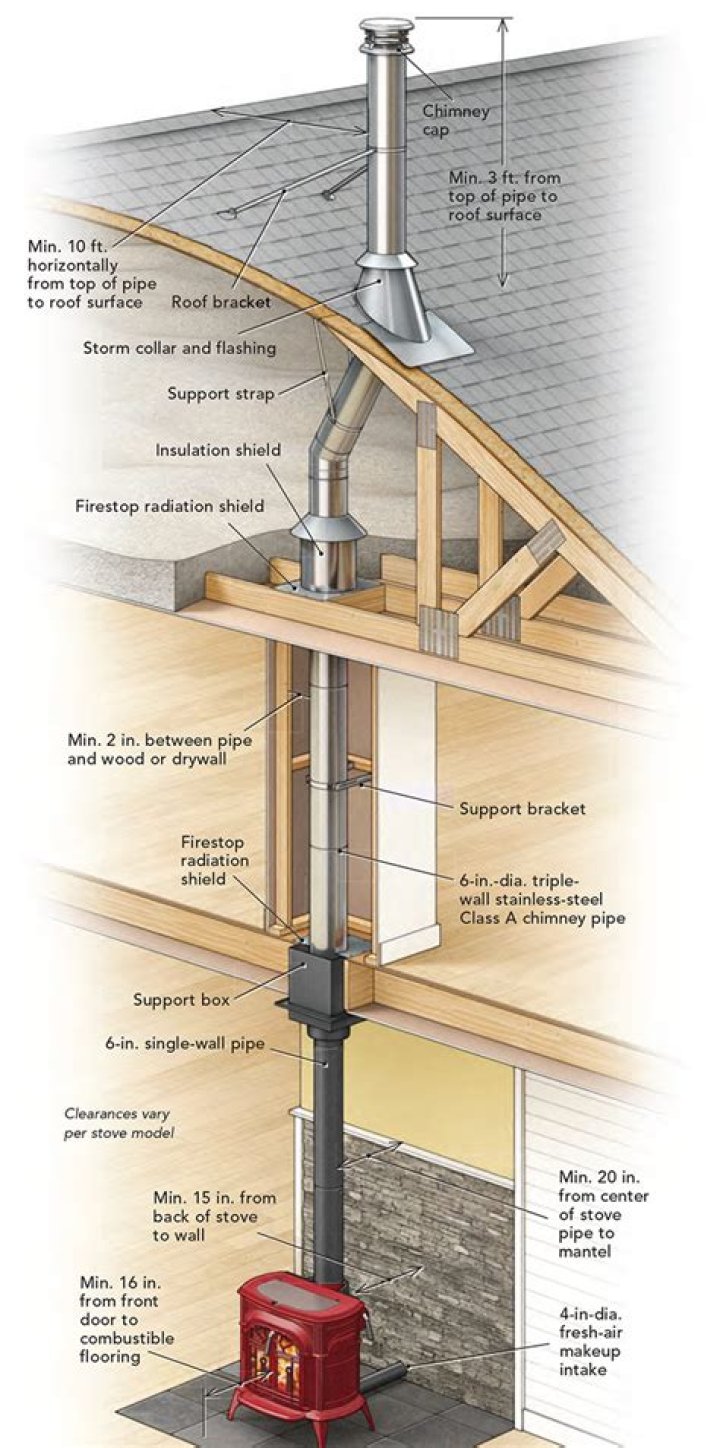

How far does a wood stove need to be away from a wall?

Dry-wall-covered wood stud walls are flammable. In the absence of any kind of wall protection, a typical radiant-type stove or heater needs to be at least 36 inches away from the wall to be safe.

What is the minimum clearance for a wood stove?

Yes. As an example, a 6-inch pipe requires 18 inches of clearance; this is three times the pipe’s diameter. Similar to a stove, heat shields can be used to reduce clearances by the same factor as previously mentioned. It is possible to reduce the clearance from 18 inches to 6 inches using sheet metal.

How close can a wood stove be to a wall with heat shield?

Assisting with “When using a single wall stovepipe, the clearance between the wall and the stovepipe is reduced from 18″ to 6″ and 9” to the ceiling. There is a widespread belief that the stovepipe can extend from the wood-burning stove all the way up to the ceiling and the roof.

What do I put on the wall behind a wood stove?

A stove’s traditional heat shield is the fireback.Replace the back wall with heat-resistant materials such as stones or wood stove heat shields, but this can be time-consuming and unappealing in appearance.

How close can a wood stove be to cement board?

Noncombustible material (such as tile, concrete board, or certified to UL-1618 or as defined by local codes) must extend beneath the heater and be at least 6 inches from each side and at least 16 inches from the stove’s front face and be at least 6 inches wide to protect a combustible floor “(or the rear combustible clearance… )

Can a wood stove chimney go out the wall?

Rather than installing a vertical chimney that necessitates the use of a ceiling collar and roof flashing when installing a wood or pellet stove, consider running the chimney pipe through an exterior wall.

How close can a fireplace be to a wall?

The National Fire Protection Agency (NFPA) recommends a distance of 36 inches between a fireplace and bare walls for safety reasons. Insulation or a heat-resistant material can be used to protect the walls around a fireplace that is less than 36 inches from the wall.

Do cast iron wood stoves need fire bricks?

No. However, most stoves have a brick floor in order to prevent the fire from spreading. Burning coals directly on the steel stove floor wears it down over time; the bricks serve as a shield.

How do I fireproof a wall behind a wood stove?

It’s common to see fireproof walls behind stoves made from stone, brick, and tiles. A faux panel (like a stone veneer look) or a fireback can be used to enhance the look of a wood-burning stove.

Is drywall OK behind a wood stove?

Combustible and unsuitable for either use behind a wood-burning stove or under tile, drywall is not the best option. Cement backerboard can be installed in its place after it is removed from the wall behind the wood stove. Using a drywall saw, slice through the drywall cleanly and cleanly without leaving any residue behind.
