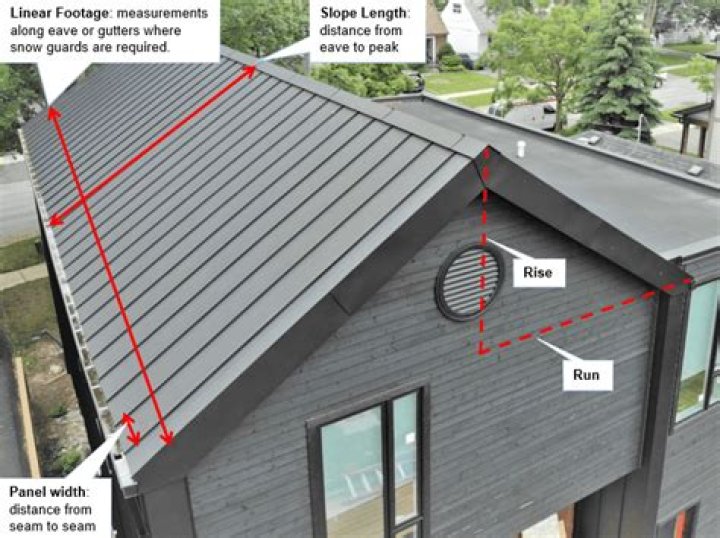

How do you measure a metal roof?

Divide your roof’s length by the metal’s width. We’ll use a 24-inch standing seam roof for our example, so we’ll divide 360 inches by 24 to arrive at a final answer of 15. In order to cover the length of a single roof pitch, you’ll need this many metal panels.

How do I figure out how many sheets of roofing I need?

It’s easy to figure out how wide these panels are once you know how long they are. Divide 240 by 24 if your roof is 240 inches wide and your sheets are 24 inches wide. In the end, the number of panels needed to cover the roof is 10.

How much should a metal roof overhang?

A typical metal roof overhang can be anywhere from 2 to 4 inches wide, or even less, depending on the manufacturer. A drip edge flashing and a small overhang are both recommended to keep water from penetrating the roof and damaging the underlying wood.

How do you measure up a roof?

You’ll multiply the roof’s footprint by 1.3 to get the square footage of your roof if you want a walkable gable roof. To calculate the square footage of your hip roof, multiply the roof’s footprint by 1.4.

How much should corrugated roofing sheets overlap?

There should be a minimum of one corrugation between each piece of corrugated sheeting. Cladco lapping tape is recommended when overlapping corrugated sheeting.

How much should metal roof panels overlap?

Experts generally recommend an overhang of one and a half inches to two inches.

What is the standard size of a roofing sheet?

26 and 36 inch widths are the most common. The 24 and 39-inch widths are also common measurements.

Do I need furring strips under metal roof?

Wood stripping can be added to the underside of a new metal roof to give your home a more traditional look. Condensation is prevented by the addition of furring strips to the insulation. Installing a metal roof on top of shingles without using furring strips is not ideal.

Do you need drip edge on metal roof?

Metal roofing does not necessitate the use of a drip edge. You don’t need a drip edge at the eaves and rakes if you overhang your metal roofing by at least an inch. Water will be directed away from the fascia if the metal roof hangs over an inch.

How far apart do you put screws on a metal roof?

Make sure that the roofing screws are not too close to each other when putting them in. A distance of one and a half to two feet should be maintained between each roofing screw, but this should not be exceeded.

How do you figure the linear Metre of a roof?

Using a tape measure, record the length and width of your area in centimeters (cm) or meters (m), such as 3 meters 55 centimeters (355cm) or 3.55 meters (3.55m). The total square meter (m2) is calculated by multiplying the area’s length by its width.

Is the square footage of a house the same as the roof?

Not all home square feet are the same when it comes to calculating a roofing estimate.Depending on the source of the information, the estimated roof area will be calculated in a different way. We (roofing contractors) need to know the roof’s square footage in order to provide a cost estimate for the project.

How do you measure a corrugated roof?

Calculate the square footage of the roof’s surface area by multiplying its length by its width. An object with a 21-foot length and a 10-foot width has a surface area of 210 square feet.

Do you put felt under a metal roof?

Felt underlayment is ineffective as an air barrier because it does not resist air and moisture vapor migration. Buildings with proper slope and low moisture loads in dry or arid climates are best served by architectural metal roofs with felt underlayment.

How much lap does a metal roof need?

Between 2″ in 12″ of rise and 4″ in 12″ rise, you can apply metal roofing. A low slope application necessitates additional steps (see above under roof pitch). – Make sure that the upper panel completely covers the lower panel when doing an end lap. End laps should be overlapped by 3-6″ at the most.
